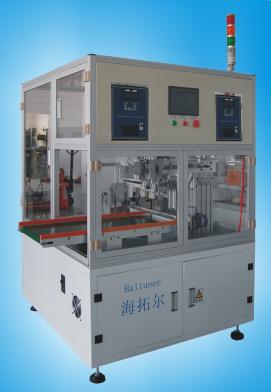

3-axis automatic double-sided spot welding machine

   Universal 18650/21700/26650/32700 welding

1. power supply: single-phase 220V/50Hzï¼›; (16A connector); 2: power: 3200 w;

3. Air source: 0.5 ～0.8Mpa dry air source; 4. Equipment weight: 250kg;

5: Overall dimension: 1150*900*1800mm; 6: X-axis stroke: 550mmï¼›; (600mm is an extended version)

7: Y axis stroke: 320mm; 8: x, y resolution accuracy: 0.05mmï¼›;

9. Spot welding pressure: 1.5-5.0 kg; 10: Maximum spot welding speed: 3200 cells/h;

11: The spot welding head adopts Taiwan Province Shangyin precision slider, which is five times longer than that of the bearing head, and the pressure is more stable.

12: the module is driven by servo motor, which is stable and efficient; The nose is pneumatically driven.

13. Adopting the latest control card of Haituo, the program design and operation are simple, and the whole column programming has memory.

14: Coaxial horizontal double-sided simultaneous spot welding design ensures the welding reliability of each battery cell, without explosion welding or empty welding;

15: Man-machine interface, which is convenient for employees to operate and use. New employees can skillfully operate and maintain this equipment only by video training;

16: adopt Haituo 8000A energy storage inverter DC spot welding power supply with current monitoring and alarm function to ensure the stability of each welding current; (Optional 380V high-frequency inverter DC power supply and transistor power supply 6000A/10000A)

17: The electrode adopts high-speed air-cooling heat dissipation instead of water-cooling complex design to solve the problem that long-time welding and high temperature affect the output stability;

18: 99 groups of different production programs can be saved, which is convenient for subsequent production calls;
