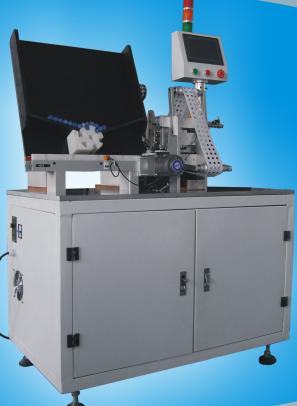

Machine for pasting insulating paper on cylindrical battery
（Battery positive insulation paper machine 18 21 26 32 model optional）
1. power supply: single-phase 220V/50Hzï¼›; (10A connector);
2: power: 1000 w;
3. Air source: 0.5 ～0.8Mpa dry air source;
4. Equipment weight: 200Kg REFï¼›;
5: Overall dimension: 1200 * 900 * 1430mm;
6. Maximum speed: > 4500pcs/h;
7. Adopt Xinjie PLC and Kunlun man-machine interface to ensure the long-term stability of the equipment;
8. Continuous stamping design reduces the cost of a single insulating material by 70%;
9: 1 set of equipment saves 3~4 labors;
10: Man-machine interface, which is convenient for employees to operate and use. New employees can skillfully operate and maintain this equipment by reading video training materials;
11: The first unique inclined feeding design effectively solves the shortcomings that employees in the industry are difficult to feed and easy to drop batteries during actual operation;
12: fixed stroke design, the contact surface is made of insulating material to effectively ensure that the battery cell is not crushed;
13: The second-generation compound mold design is adopted, so it is not necessary to spray degumming agent frequently in use; No need to clean the die punch frequently;
14: Non-standard functions can be customized, such as testing and automatic receiving.
15: Unified on-line channel design, which can connect the sorter to save manual handling time.
16: There are other general models available, but they need to be replaced and debugged. It is not recommended for manufacturers who do not use multi-model batteries.
