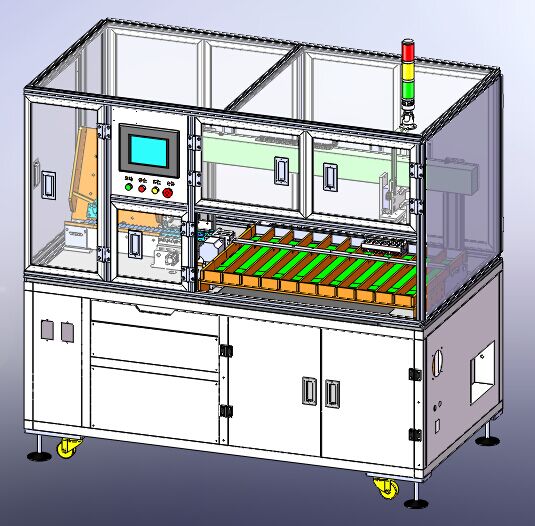

HTEC-7500 battery automatic sorter (optional scanning code)
A testing and sorting equipment for the internal resistance and voltage of cylindrical batteries 18650/26650/32700 is equipped with a high-precision internal resistance and voltage automatic testing system. The equipment accurately sends the batteries to the designated gear according to the internal resistance and voltage values set on computer software, and the system can realize 10 levels (10 testing stations and 10 sorting levels) at most. This equipment can test more than 7000 assembled batteries per hour, and its structural design is simple and generous, and its performance is stable. In the market, it is one of the most cost-effective sorting equipment so far.
1. power supply: single-phase 220V/50Hzï¼›; (10A connector);
2: power: 1200 w;
3. Air source: 0.5 ～0.8Mpa dry air source;
4. Equipment weight: 230Kg REFï¼›;
5: Overall dimension: 1360 * 1400 * 1600 mm;
6. Maximum sorting speed: 7500 PCs/h;
7. Internal resistance range: 3.1000 0.5% R.D. 0.5% F.S.
8. Resolution of internal resistance measurement: 0.1mΩ3562
9: Voltage measurement resolution: 0.1mV3562
10: Voltage range: 19.9999 V 0.01% R.D. 0.3% F.S.
11: Adopt Japanese Panasonic PLC to ensure the long-term stability of the equipment;
12: Coaxial 10 batteries are designed at the same time to ensure the test accuracy of each battery and not to miss the test;
13: 12 inch large screen man-machine interface, convenient for employees to operate and use, new employees only need 10~20 minutes of training to skillfully operate and maintain this equipment;
14: Exclusive and unique inclined feeding design, which effectively solves the shortcomings that employees in the industry are difficult to feed and easy to drop batteries when operating;
15: Flexible programmable design can guarantee any combination of voltage and internal resistance;
16: Adopt coaxial high-frequency test probe to ensure test accuracy;
17: 750W servo is used to control the displacement accuracy of gear blanking to prevent gear mixing;
18: Adopt percentage average algorithm and Kaya Hioki test meter imported from Japan to ensure higher accuracy and long-term stability of each test;
19: 29 groups of different production programs can be saved, which is convenient for subsequent production calls;
20: Funnel blanking design, providing buffer time for employees to receive materials;
21: 1 set of equipment saves 3~4 labors;
