At present, Miyachi transistor resistance welding machine, the only original welding machine brand in Japan, is a world-leading well-known brand. It was established in Japan in 1966 with a history of 50 years, and the global high-end market share reached about 70%. Through its own experience in the field of lithium battery welding for more than 18 years, Haituo integrated the advanced automation control platform, and developed a wide and good cooperative relationship with Miyachi, and simultaneously launched Miyachi transistor resistance welding machine (desktop) and single/double-sided welding automation in the domestic market.

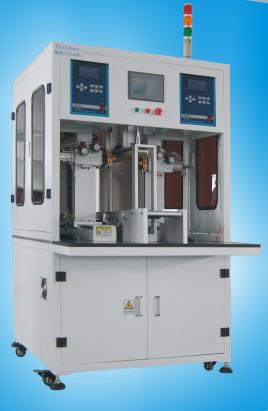

HTE-600 (automobile battery pack) channel 6-axis double-sided automatic spot welding machine
1. power supply: single-phase 220V/50Hzï¼›; (16A connector)
2: Power: 4500 W;
3. Air source: 0.5 ～0.8Mpa dry air source;
4. Equipment weight: 380kg;
5: Overall dimension: 1300 * * 1100mm * 1800
6: Y axis stroke: 600mmï¼›;
7: Z axis stroke: 400 mm;
8: x, y, z analytical accuracy: 0.05mmï¼›;
9. Spot welding pressure: 1.5-5.0 kg;
10: Maximum spot welding speed: 3600 cells/h;
11. The overall appearance is beautiful and the workmanship is excellent.
12. The feeding and discharging system can move forward and then out, which is convenient for the production line to develop in the direction of full-automatic modularization.
13. The spot welding head adopts Taiwan Province Shangyin precision slider, which is five times longer than that of the bearing head, and the pressure is more stable.
14. The spot welding head uses Miaji pressure following mechanism to avoid the phenomenon of uneven fatigue pressure for a long time.
15. It has breakpoint connection function and one-button repair welding function.
16. Automatic compensation for capillary wear, welding current monitoring, voltage feedback compensation current, abnormal record alarm.
17. Standard electrode air cooling design, optional electrode electronic refrigeration cooling.
18. 16 years' experience in battery welding can help customers choose high-frequency energy storage power supply or transistor power supply instead of Miaji power supply, thus reducing the investment cost.
19. The welding machine has automatic recognition of welding front and back, and the welding fixture position detection alarm.
20. The machine head can be horizontal or horizontal, and various welding paths such as horizontal, vertical and M-shaped routes can be programmed.
21. Maximum 20 rows and 30 columns are suitable for all battery combination welding, numerical control array programming, and 99 groups of formulas are saved.
22. Optional monitoring welding temperature, pressure, current and MES system.
